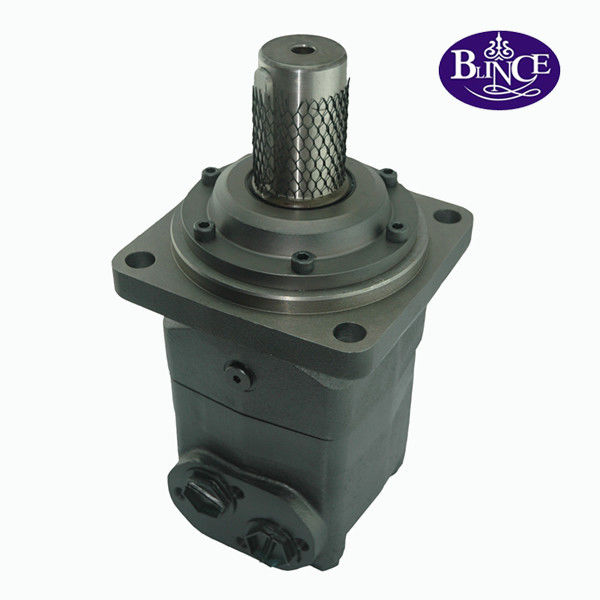

Name: Orbital Variable Speed Boat Winch Motor High Torque For Drilling / Sawing Machine OMV400
Brand: BLINCE
SKU: OMV hydraulic motor
Price: 199 USD
Availability: InStock
Rating: 5 (196 reviews)

Home Products Hydraulic Winch Motor

Orbital Variable Speed Boat Winch Motor High Torque For Drilling / Sawing Machine OMV400

Product Details:

Place of Origin:	China
Brand Name:	BLINCE
Model Number:	OMV hydraulic motor

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	199-350usd/pc
Packaging Details:	Carton or wood case
Delivery Time:	15-20days
Payment Terms:	T/T, Western Union
Supply Ability:	3000pcs/month

Contact Now

Detailed Product Description

Displacement:	315 To 1000rev	Material:	Cast Iron
Speed:	200to510rpm	Flange:	Two Kinds Square Flange
Shaft:	Cylinder ,spline Tapered	Torque:	920to 2015n.m
Highlight:	parker winch motor , ramsey winch motor

UNIQUE FEATURE

1 high pressure of Germany shaft seal

2 high load and large torque
3large shaft radial force bearing

4 applied in (sweeper machine / injection molding machine / winch / lawn mower / mini garden tractors/ wheat harvest machine / fish boat/ mini crawler tractor / winch machine / convery equipment/ road line maker /etc.

blince omv hydraulic motor detail model and data sheet

Type		OMV 315	OMV 400	OMV 500	OMV 630	OMV 800	OMV 1000
Displacement (cc/rev)		333	419	518	666	801	990
Max torque (n.m)	cont	920	1180	1460	1660	1880	2015
	int	1110	1410	1760	1940	2110	2280
Max pressure (Mpa)	cont	20	20	20	18	16	14
	int	24	24	24	21	18	16
Max speed rate (rpm)	cont	510	500	400	320	250	200
	int	630	600	480	380	300	240
Max flow (L/min)	cont	160	200	200	200	200	200
	int	200	240	240	240	240	240
Weight(kg)		31.8	32.6	33.5	34.9	36.5	38.6

Tag:

parker winch motor,

ramsey winch motor
