| Place of Origin: | China |
| Brand Name: | BLINCE |
| Model Number: | OZ hydraulic motor |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 100-200usd/pc |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Displacement: | 36 ~400cc/rev | Speed: | 104~1081rpm |
|---|---|---|---|
| Torque: | 51~392n.m | Power: | 3.4~5.2kw |
| Material: | Cast Iron | Warranty: | One Year |
| Highlight: | geroler hydraulic motor,small hydraulic motors |
||

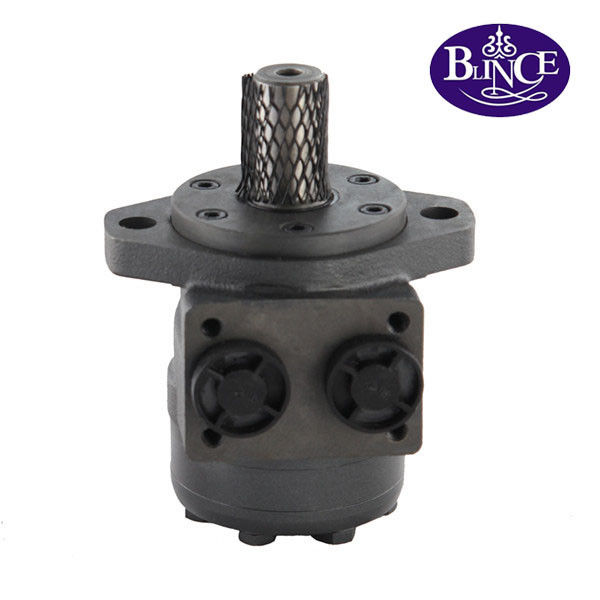

OZ series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the gerotor gear set design and provide compact volume, high power and low weight.
Characteristic features:
1. Advanced manufacturing devices for the gerotor gear set, which provide small volume, high efficiency and long life.
2.Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
3. Advanced construction design, high power and low weight.
| code |
Displacement (cm/rem) |
Max.speed (rpm) |
Max.torque (N.m) |
Max.output (kw) |
Max pressure (MPa) |
Max.oil Flow(L/min) |
|||
| cont. | cont. | int. | cont. | int. | cont. | int. | cont. | ||
| OZ36 | 37 | 1081 | 51 | 68 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ50 | 51.7 | 774 | 73 | 96 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ80 | 77.7 | 515 | 106 | 143 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ100 | 96.2 | 416 | 140 | 178 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ125 | 117.9 | 339 | 162 | 218 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ160 | 155.5 | 257 | 216 | 288 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ200 | 189.9 | 211 | 264 | 351 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ250 | 231 | 173 | 281 | 351 | 4.6 | 7 | 9 | 11.5 | 40 |
| OZ315 | 311.7 | 128 | 312 | 433 | 3.4 | 5.8 | 7 | 10.5 | 40 |
| OZ400 | 386.2 | 104 | 392 | 582 | 3.4 | 5.8 | 7 | 10.5 | 40 |
