| Place of Origin: | China |
| Brand Name: | BLINCE |
| Certification: | ISO9001:2008 |
| Model Number: | PV2R hydraulic vane pump cartridge kits |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton or wood case |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Features: | Low Noise High Pressure | Nominal Displacement: | 6-153 Ml/r |
|---|---|---|---|
| Material: | Cast Iron | Pressure: | High Pressure |
| Application: | Replace Kits In PV2R Pump | ||
| Highlight: | vane type hydraulic pump,vane pump power steering |
||

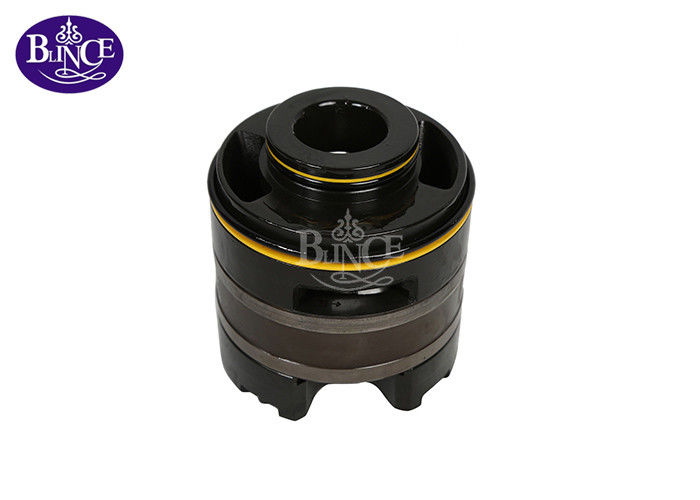

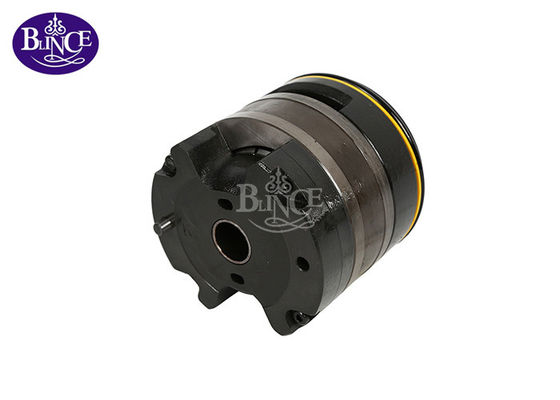

China Cartridge Kits For Yuken PV2R Series Hydraulic Vane Pump
Yuken PV2R pump
PV2R single vane pump: PV2R1, PV2R2, PV2R3
PV2R double vane pump: PV2R12, PV2R13, PV2R23
They are the special model, lower noise and better quality than Original PV2R vane pumps.
1. Same connecting dimension, but 4-8DB noise and better performance(>85% effective than original pump.
2. Different dimension with Original PV2R parts, including the cartridge kits and parts.
PV2R1, PV2R2, PV2R3, PV2R4, PV2R12, PV2R13, PV2R23, PV2R14, PV2R24,
PV2R34 are widely used in Heavy equipments, Mining machinery,
Rubber & Plastic machinery, Shoes machinery, Die Casting Machinery, Metallurgical machinery, Metal Cutting Machinery and other types of hydraulic systems.
Model |
Theoretical displacement (mL/r) |
Max pressure |
Allowed driving speed (r /min) |
|||||
Working oil of Petroleum series |
Water-based synthetic hydraulic fluid |
|||||||
Particular pressure oil |
Anti-wear oil |
Common oil |
Anti-wear water-glyco |
Sul phosuccinic Ester fatty of acid |
Max |
Mini |
||
| PV2R1-6 PV2R1-8 PV2R1-10 PV2R1-12 PV2R1-14 PV2R1-17 PV2R1-19 PV2R1-23 PV2R1-25 PV2R1-28 PV2R1-31 |
6.1 8.1 10.2 12.3 14.0 16.3 18.3 22.5 25.1 27.6 30.6 |
21 |
17.5 |
16 |
16 |
16 |
1800 (1200) |
750 |
| PV2R2-26 PV2R2-33 PV2R2-41 Pv2R2-47 PV2R2-53 PV2R2-59 PV2R2-65 PV2R2-75* |
25.4 32.2 40.5 46.2 52.3 58.2 64.1 74.5 |
21 |
17.5 |
14 |
16 |
14 |
1800 (1200) |
600 |
| PV2R3-52 PV2R3-60 PV2R3-66 PV2R3-76 PV2R3-85 PV2R3-94 |
51.5 62.9 67.0 79.2 84.5 93.8 |
21 |
17.5 |
14 |
16 |
14 |
1800 (1200) |
600 |
| PV2R3-116 PV2R3-125 PV2R3-136 PV2R3-153 |
113.2 122.8 135.8 152.8 |
17.5 |
16 |
14 |
1200 |
|||
